IC MOTOR DRIVER 9V 16QFN

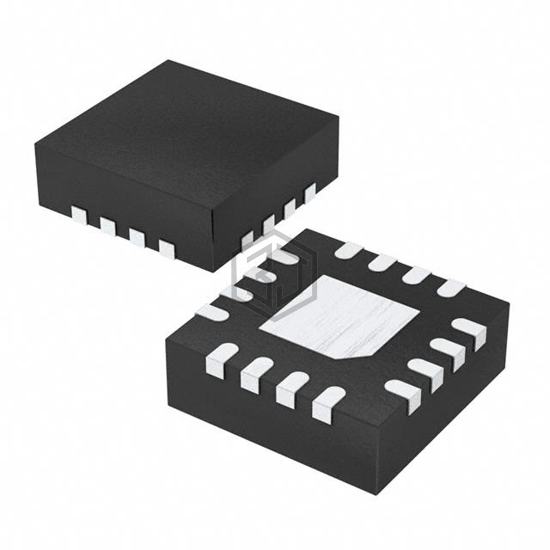

AP1016AEN is a PMIC - Full, Half-Bridge Drivers manufactured by Asahi Kasei Microdevices/AKM. IC MOTOR DRIVER 9V 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2.7V ~ 5.5V, package / case 16-UFQFN Exposed Pad.
In Stock: 4,469
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Half Bridge (4) |
| Applications | General Purpose, Stepper Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 270mOhm LS, 270mOhm HS |
| Current - Output / Channel | 1A |
| Current - Peak Output | 1.4A |
| Voltage - Supply | 2.7V ~ 5.5V |
| Voltage - Load | 2V ~ 9V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
AP1016AEN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STSPIN240 | STMicroelectronics | LOW VOLTAGE DUAL BRUSH DC MOTOR | 83% | View |
| A3909GLNTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10SSOP | 81% | View |
| A3909GLYTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10MSOP | 81% | View |
| DRV8932PPWPR | Texas Instruments | 33V, 1A QUAD INDEPENDENT HALF BR | 68% | View |
| TLE94004EPXUMA1 | Infineon Technologies | BODY BRIDGES | 53% | View |
| TLE94104EPXUMA1 | Infineon Technologies | BODY BRIDGES | 53% | View |
Submit your RFQ for AP1016AEN and get a quote within 24 hours.
