LOW VOLTAGE TRIPLE HALF-BRIDGE M

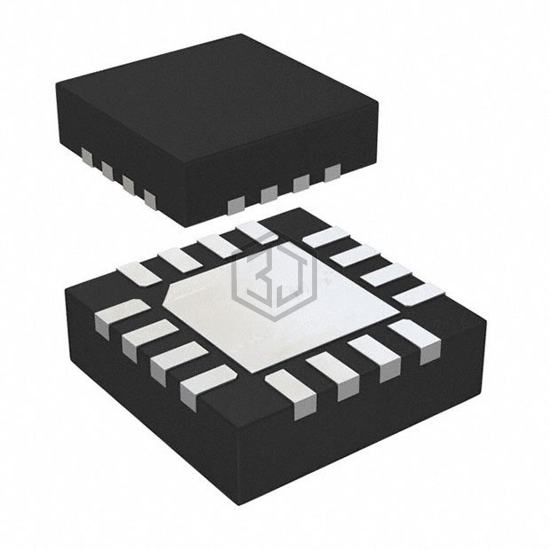

STSPIN230 is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. LOW VOLTAGE TRIPLE HALF-BRIDGE M. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 0V ~ 5V, package / case 16-VFQFN Exposed Pad.
In Stock: 1,130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 400mOhm LS + HS |
| Current - Output / Channel | 1.3A |
| Current - Peak Output | - |
| Voltage - Supply | 0V ~ 5V |
| Voltage - Load | 1.8V ~ 10V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VFQFPN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STSPIN233 | STMicroelectronics | LOW VOLTAGE TRIPLE HALF-BRIDGE M | 100% | View |
| T6818-TUS | Microchip Technology | IC DRIVER TRPL HALFBRIDGE 14SOIC | 64% | View |
| T6818-TUSY-66 | Microchip Technology | IC DVR TRPL HALF BRIDGE 14SOIC | 64% | View |
| T6818-TUQY-66 | Microchip Technology | IC DVR TRPL HALF BRIDGE 14SOIC | 64% | View |
| NCV7703CD2R2G | onsemi | IC DVR HALF BRIDGE TRPL 14SOIC | 63% | View |
| IRSM515-015PAALMA1 | Infineon Technologies | CIPOS MICRO SOP23 | 56% | View |
Submit your RFQ for STSPIN230 and get a quote within 24 hours.
