33V, 1A QUAD INDEPENDENT HALF BR

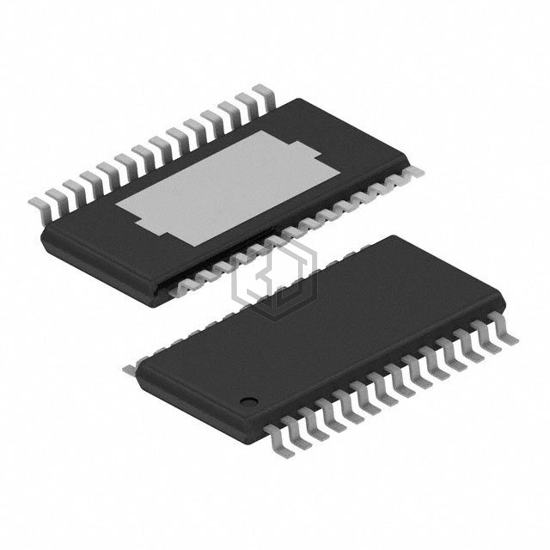

DRV8932PPWPR is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. 33V, 1A QUAD INDEPENDENT HALF BR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 33V, package / case 28-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 3,599
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose, Solenoids, Stepper Motors |
| Interface | Analog, Logic, PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 550mOhm LS, 550mOhm HS |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | 1.5A |
| Voltage - Supply | 4.5V ~ 33V |
| Voltage - Load | 4.5V ~ 33V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Charge Pump |
| Fault Protection | Current Limiting, Over Current, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A3909GLNTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10SSOP | 80% | View |
| A3909GLYTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10MSOP | 80% | View |
| TLE94004EPXUMA1 | Infineon Technologies | BODY BRIDGES | 78% | View |
| TLE94104EPXUMA1 | Infineon Technologies | BODY BRIDGES | 78% | View |
| DRV8935PRGER | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 77% | View |
| DRV8935PPWPR | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 77% | View |
Submit your RFQ for DRV8932PPWPR and get a quote within 24 hours.
