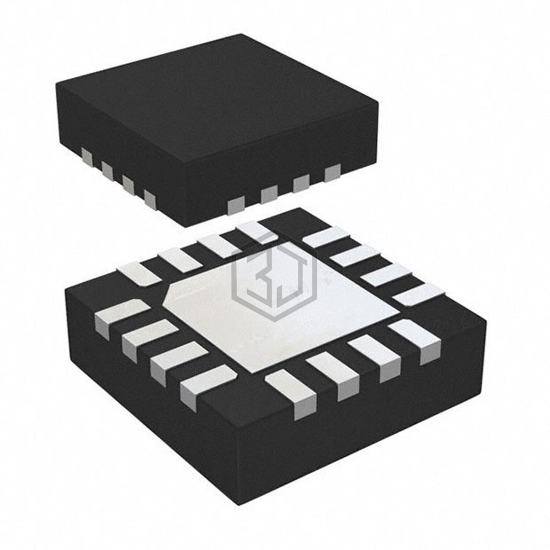

LOW VOLTAGE DUAL BRUSH DC MOTOR
STSPIN240 is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. LOW VOLTAGE DUAL BRUSH DC MOTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 0V ~ 5V, package / case 16-VFQFN Exposed Pad.
In Stock: 20,751
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 400mOhm LS + HS |
| Current - Output / Channel | 1.3A |
| Current - Peak Output | - |
| Voltage - Supply | 0V ~ 5V |
| Voltage - Load | 1.8V ~ 10V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VFQFPN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP1023AEN | Asahi Kasei Microdevices/AKM | IC MOTOR DRIVER 7V 24QFN | 91% | View |
| AP1016AEN | Asahi Kasei Microdevices/AKM | IC MOTOR DRIVER 9V 16QFN | 83% | View |
| DRV8932PPWPR | Texas Instruments | 33V, 1A QUAD INDEPENDENT HALF BR | 69% | View |
| A3909GLNTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10SSOP | 66% | View |
| A3909GLYTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10MSOP | 66% | View |
Submit your RFQ for STSPIN240 and get a quote within 24 hours.
