BODY BRIDGES

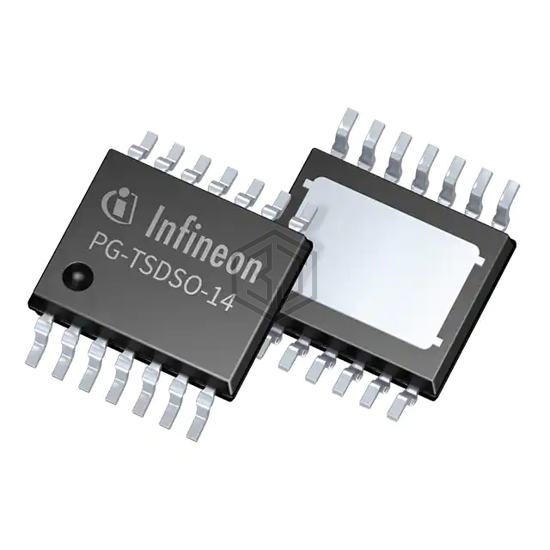

TLE94104EPXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. BODY BRIDGES. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 7,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose |
| Interface | SPI |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 825mOhm LS, 825mOhm HS |
| Current - Output / Channel | 2A |
| Current - Peak Output | - |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 5.5V ~ 20V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-TSDSO-14 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE94004EPXUMA1 | Infineon Technologies | BODY BRIDGES | 100% | View |
| DRV8935PRGER | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 81% | View |
| DRV8935PPWPR | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 81% | View |
| DRV8932PPWPR | Texas Instruments | 33V, 1A QUAD INDEPENDENT HALF BR | 78% | View |
| A3909GLNTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10SSOP | 62% | View |
| A3909GLYTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10MSOP | 62% | View |
Submit your RFQ for TLE94104EPXUMA1 and get a quote within 24 hours.
