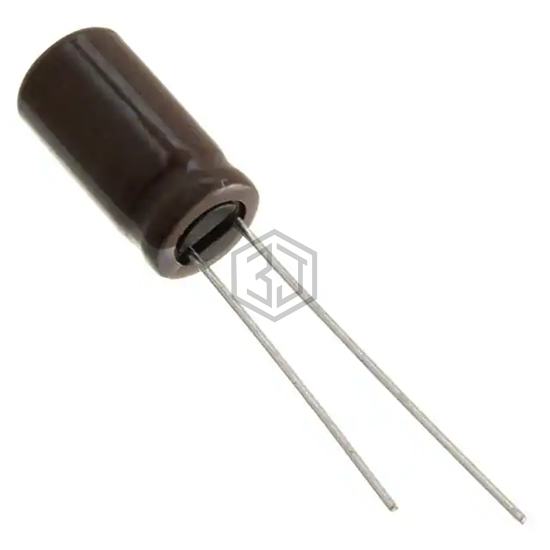

CAP ALUM 330UF 20% 25V RADIAL
EKY-250ELL331MH15D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,913
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 100 kHz |
| Impedance | 87 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EKY-250ELL331MH15D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1E331MPD8 | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 93% | View |
| URZ1J331MHD | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 72% | View |
| SEK331M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 63V RADIAL | 67% | View |
| MAL211817331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 40V AXIAL | 63% | View |
| UBW1A331MPD | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 62% | View |
| MAL214859331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V RADIAL | 60% | View |
Submit your RFQ for EKY-250ELL331MH15D and get a quote within 24 hours.
