Cornell Dubilier Electronics (CDE)

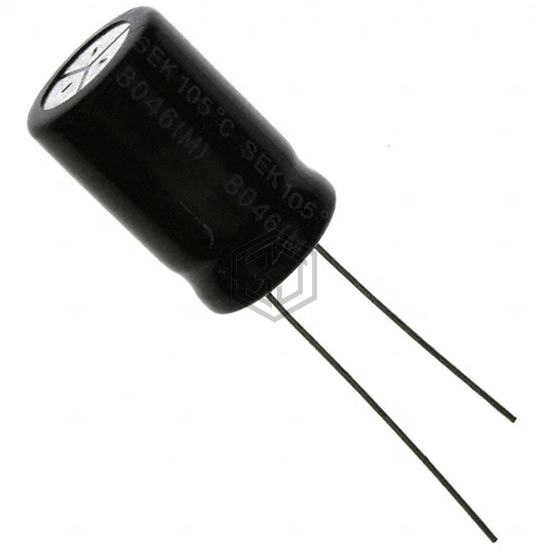

CAP ALUM 330UF 20% 63V RADIAL
SEK331M063ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 330UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 400mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 910 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1J331MHD | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 90% | View |
| MAL216061331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 85% | View |
| MAL211817331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 40V AXIAL | 75% | View |
| EKMG500ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 73% | View |
| 337KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 50V RADIAL | 67% | View |
| UBW2A331MPD | Nichicon | CAP ALUM 330UF 20% 100V RADIAL | 62% | View |
