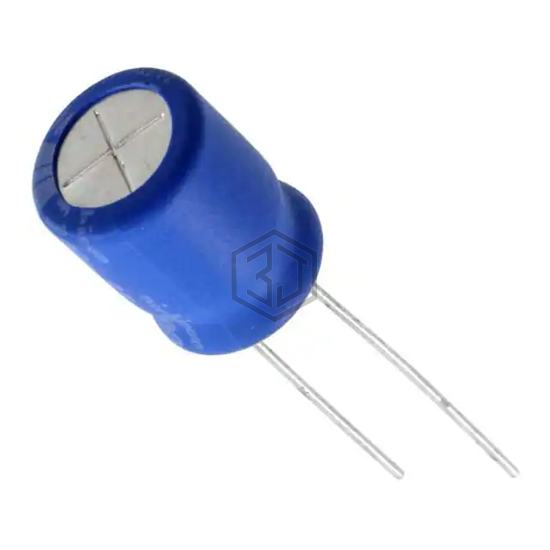

CAP ALUM 330UF 20% 10V RADIAL
UBW1A331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 620 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1C331MPD | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 79% | View |
| UBX1E331MHL | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 77% | View |
| UBX1H331MHL1TO | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 69% | View |
| UBX1H331MHL | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 69% | View |
| UBX1V331MHL1TN | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 67% | View |
| UBX1A331MPD1TD | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 65% | View |
Submit your RFQ for UBW1A331MPD and get a quote within 24 hours.
