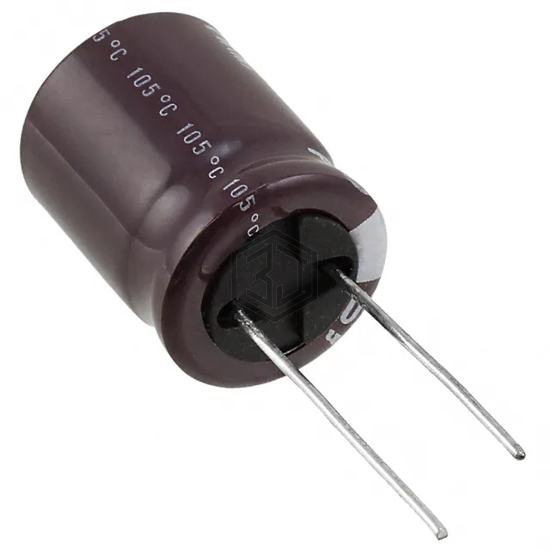

CAP ALUM 330UF 20% 63V RADIAL
URZ1J331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,528
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 765 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK331M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 63V RADIAL | 90% | View |
| MAL216061331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 85% | View |
| EKMG500ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 83% | View |
| MAL211817331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 40V AXIAL | 80% | View |
| ELXY250ELL331MH20D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 70% | View |
| UBW1A331MPD | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 62% | View |
