Toshiba Semiconductor and Storage
INVERTER/3 HALF BRIDGE MOSFETS W

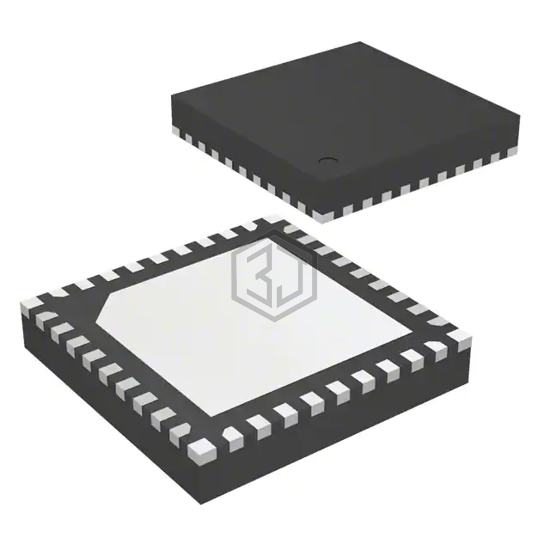

TB67Z800FTG,EL is a PMIC - Full, Half-Bridge Drivers manufactured by Toshiba Semiconductor and Storage. INVERTER/3 HALF BRIDGE MOSFETS W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 5.5V ~ 22V, package / case 36-VFQFN Exposed Pad.
In Stock: 10,873
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | General Purpose |
| Interface | Logic |
| Load Type | Inductive, Capacitive |
| Technology | - |
| Rds On (Typ) | - |
| Current - Output / Channel | 3A |
| Current - Peak Output | - |
| Voltage - Supply | 5.5V ~ 22V |
| Voltage - Load | 5.5V ~ 22V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 36-VFQFN Exposed Pad |
| Supplier Device Package | 36-VQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8312DDW | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 75% | View |
| DRV8312DDWR | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 75% | View |
| TLE94103EPXUMA1 | Infineon Technologies | BODY BRIDGES | 73% | View |
| MP6536DU-LF-Z | Monolithic Power Systems Inc. | 26V, 5.5A, 3-CHANNEL HALF-BRIDGE | 73% | View |
| MP6536DU-LF-P | Monolithic Power Systems Inc. | 26V, 5.5A, 3-CHANNEL HALF-BRIDGE | 73% | View |
| TLE94003EPXUMA1 | Infineon Technologies | BODY BRIDGES | 73% | View |
Submit your RFQ for TB67Z800FTG,EL and get a quote within 24 hours.
