BODY BRIDGES

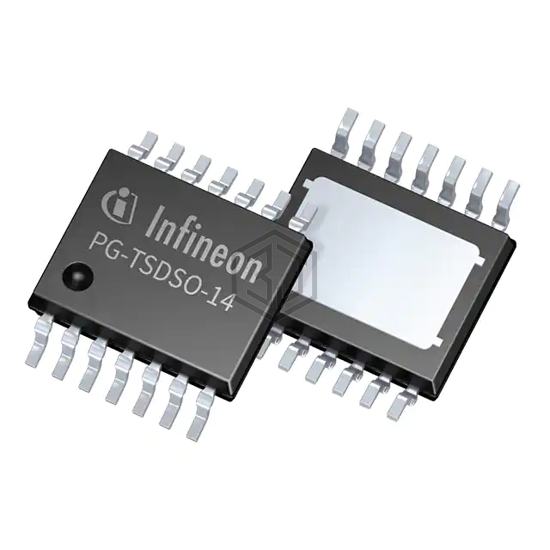

TLE94003EPXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. BODY BRIDGES. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 1,554
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | DC Motors, General Purpose |
| Interface | Direct |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 825mOhm LS, 825mOhm HS |
| Current - Output / Channel | 2A |
| Current - Peak Output | - |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 5.5V ~ 20V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-TSDSO-14 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE94103EPXUMA1 | Infineon Technologies | BODY BRIDGES | 100% | View |
| T6818-TUQ | Microchip Technology | IC DRIVER TRPL HALFBRIDGE 14SOIC | 80% | View |
| T6818-TUS | Microchip Technology | IC DRIVER TRPL HALFBRIDGE 14SOIC | 80% | View |
| T6818-TUSY-66 | Microchip Technology | IC DVR TRPL HALF BRIDGE 14SOIC | 80% | View |
| T6818-TUQY-66 | Microchip Technology | IC DVR TRPL HALF BRIDGE 14SOIC | 80% | View |
| NCV7703CD2R2G | onsemi | IC DVR HALF BRIDGE TRPL 14SOIC | 76% | View |
Submit your RFQ for TLE94003EPXUMA1 and get a quote within 24 hours.
