26V, 5.5A, 3-CHANNEL HALF-BRIDGE

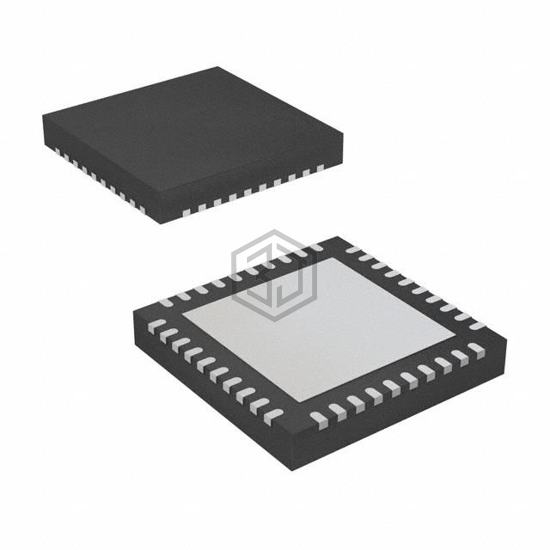

MP6536DU-LF-P is a PMIC - Full, Half-Bridge Drivers manufactured by Monolithic Power Systems Inc.. 26V, 5.5A, 3-CHANNEL HALF-BRIDGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5V ~ 26V, package / case 40-VFQFN Exposed Pad.
In Stock: 1,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM |
| Load Type | Capacitive |
| Technology | Power MOSFET |
| Rds On (Typ) | 140mOhm LS + HS |
| Current - Output / Channel | 5.5A |
| Current - Peak Output | 5.5A |
| Voltage - Supply | 5V ~ 26V |
| Voltage - Load | 5V ~ 26V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP6536DU-LF-Z | Monolithic Power Systems Inc. | 26V, 5.5A, 3-CHANNEL HALF-BRIDGE | 100% | View |
| DRV8332HDDV | Texas Instruments | IC MOTOR DRIVER 44HTSSOP | 78% | View |
| DRV8312DDW | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 66% | View |
| DRV8312DDWR | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 66% | View |
| DRV8332DKDR | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 56% | View |
| DRV8332DKD | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 56% | View |
Submit your RFQ for MP6536DU-LF-P and get a quote within 24 hours.
