POWER DRIVER

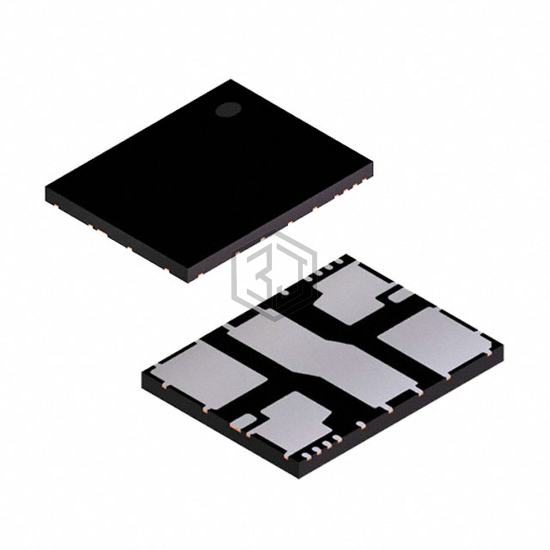

PWD13F60 is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. POWER DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 15V, package / case 28-PowerVQFN.
In Stock: 770
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (2) |
| Applications | Industrial |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 320mOhm |
| Current - Output / Channel | 8A |
| Current - Peak Output | 32A |
| Voltage - Supply | 15V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | - |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerVQFN |
| Supplier Device Package | 28-VFQFPN (10x13) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PWD13F60TR | STMicroelectronics | HIGH-DENSITY POWER DRIVERS | 100% | View |
| VN770P13TR | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 71% | View |
| VN771K13TR | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 69% | View |
| VN770KTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 69% | View |
| VN772KTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 69% | View |
| IFX9201SGAUMA1 | Infineon Technologies | IC HALF-BRIDGE DRVR 2 CH 12DSO | 57% | View |
Submit your RFQ for PWD13F60 and get a quote within 24 hours.
