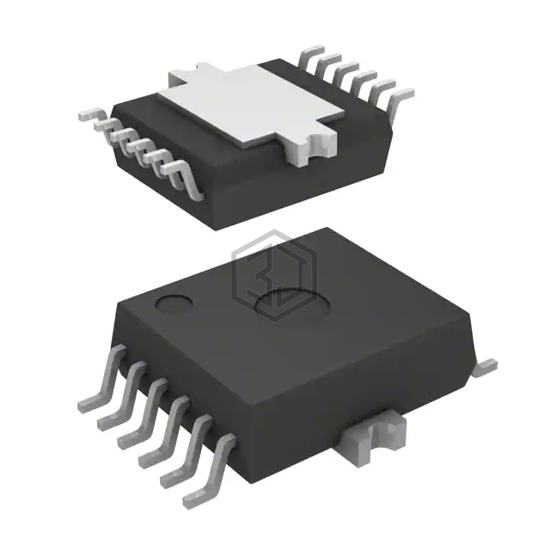

IC HALF-BRIDGE DRVR 2 CH 12DSO
IFX9201SGAUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC HALF-BRIDGE DRVR 2 CH 12DSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5V ~ 36V, package / case 12-BSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 4,570
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | PWM, SPI |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 100mOhm LS, 100mOhm HS |
| Current - Output / Channel | 6A |
| Current - Peak Output | - |
| Voltage - Supply | 5V ~ 36V |
| Voltage - Load | 5V ~ 36V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 12-BSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | PG-DSO-12-17 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7061EMSE#TRPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 100% | View |
| LTC7061IMSE#WTRPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 100% | View |
| LTC7061EMSE#PBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 100% | View |
| LTC7061IMSE#WPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 100% | View |
| LTC7060IMSE#WPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER W/ FLOAT | 94% | View |
| LTC7060EMSE#WPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER | 94% | View |
Submit your RFQ for IFX9201SGAUMA1 and get a quote within 24 hours.
