IC MOTOR DRIVER PAR 28SO

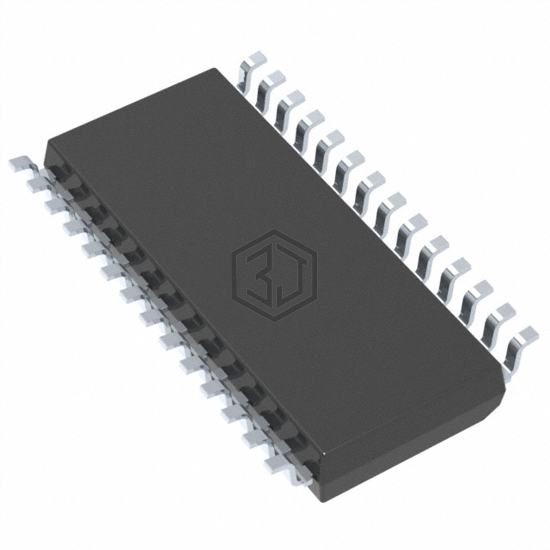

VN770P13TR is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 28SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6V ~ 26V, package / case 28-SOIC (0.295", 7.50mm Width).
In Stock: 3,334
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose, Relays |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 270mOhm (Max) |
| Current - Output / Channel | 9A |
| Current - Peak Output | - |
| Voltage - Supply | 6V ~ 26V |
| Voltage - Load | 36V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO |
VN770P13TR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN770K-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 97% | View |
| VN770KP-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 97% | View |
| VN770K13TR | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 97% | View |
| VN770KTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 97% | View |
| VN5770AK-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 90% | View |
| VN5770AKTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 90% | View |
