IC BRIDGE DRIVER PAR SCM33

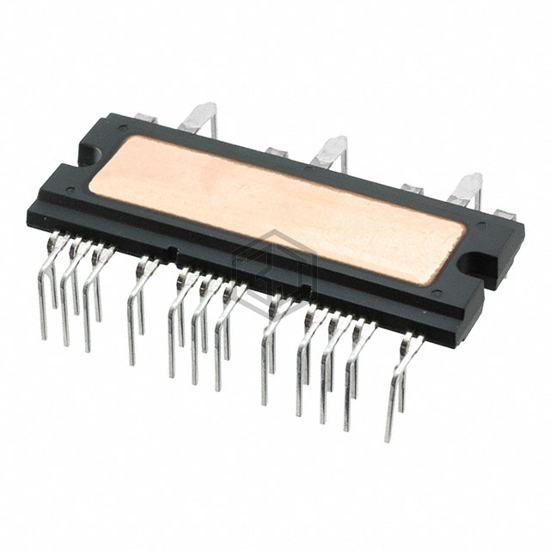

SCM1246MF is a PMIC - Full, Half-Bridge Drivers manufactured by Sanken. IC BRIDGE DRIVER PAR SCM33. Key specifications: mounting type Through Hole, operating temperature 125°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 33-PowerDIP (1.307", 33.20mm) Exposed Pad.
In Stock: 6,073
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 45A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | 125°C (TJ) |
| Features | Auto Restart, Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 33-PowerDIP (1.307", 33.20mm) Exposed Pad |
| Supplier Device Package | 33-PowerDIP LF2552 |
SCM1246MF is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK621-061-E | Sanyo | 3-PHASE INVERTER MOTOR DRIVE IC | 99% | View |
| STK5F4U3C2D-E | onsemi | IC INVERTER 3PHASE HIC 4DIP | 97% | View |
| STK581U3C2D-E | onsemi | IC MOTOR DRIVER 22SIP | 97% | View |
| STK5F1U3C2D-E | onsemi | MODULE HYBRID INVERTER 3PHASE | 96% | View |
| STK551U3A2A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 83% | View |
| SCM1245MF | Sanken | IC BRIDGE DRIVER PAR SCM33 | 82% | View |
