MODULE HYBRID INVERTER 3PHASE

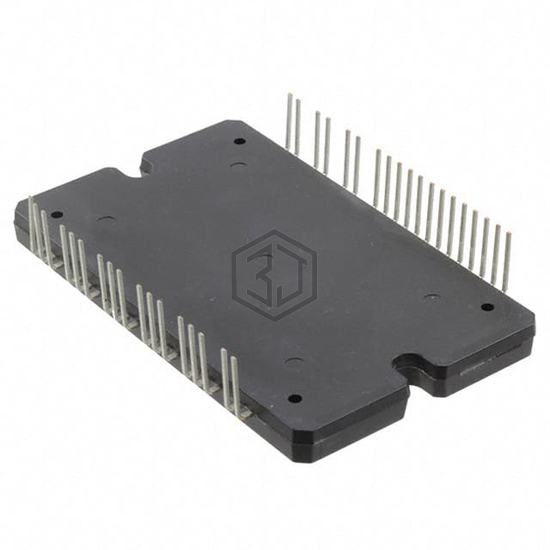

STK5F1U3C2D-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. MODULE HYBRID INVERTER 3PHASE. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 44-DIP Module, 37 Leads.
In Stock: 4,818
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 49A |
| Voltage - Supply | 12.5V ~ 17.5V |
| Voltage - Load | 450V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Current Limiting, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 44-DIP Module, 37 Leads |
| Supplier Device Package | 44-DIP |
STK5F1U3C2D-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK581U3C2D-E | onsemi | IC MOTOR DRIVER 22SIP | 99% | View |
| STK551U3A2A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 85% | View |
| STK5F1U3E3D-E | onsemi | IC IPM INVERTER 3PHASE 4DIP | 78% | View |
| STK551U392A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 72% | View |
| STK531U394A-E | onsemi | IC MOTOR DRIVER | 72% | View |
| STK534U363C-E | onsemi | 3 PHASE INVERTER IPM | 54% | View |
Submit your RFQ for STK5F1U3C2D-E and get a quote within 24 hours.
