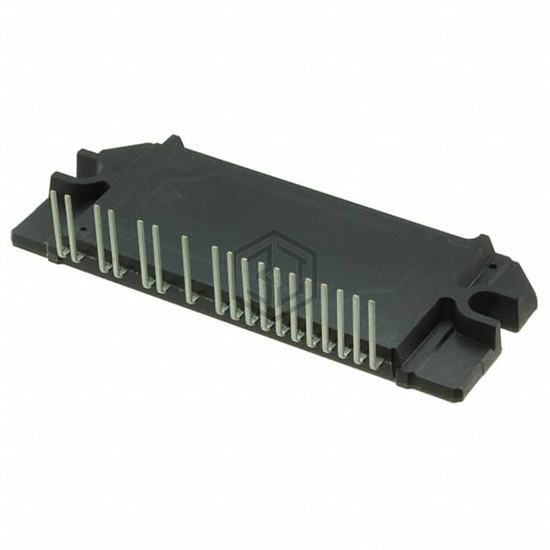

IC MOTOR DRIVER 22SIP
STK581U3C2D-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC MOTOR DRIVER 22SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 22-SIP, 18 Leads, Formed Leads.
In Stock: 8,665
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 45A |
| Voltage - Supply | 12.5V ~ 17.5V |
| Voltage - Load | 450V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 22-SIP, 18 Leads, Formed Leads |
| Supplier Device Package | 22-SIP |
STK581U3C2D-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK5F1U3C2D-E | onsemi | MODULE HYBRID INVERTER 3PHASE | 99% | View |
| STK551U3A2A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 86% | View |
| STK5F1U3E3D-E | onsemi | IC IPM INVERTER 3PHASE 4DIP | 77% | View |
| STK551U392A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 73% | View |
| STK531U394A-E | onsemi | IC MOTOR DRIVER | 73% | View |
| STK534U363C-E | onsemi | 3 PHASE INVERTER IPM | 55% | View |
Submit your RFQ for STK581U3C2D-E and get a quote within 24 hours.
