IC INVERTER 3PHASE HIC 4DIP

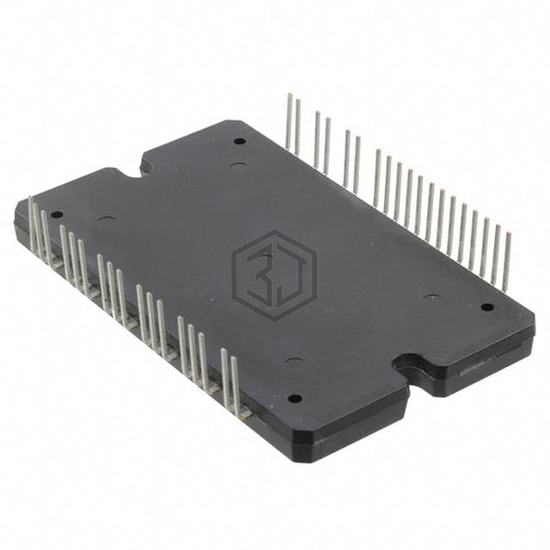

STK5F4U3C2D-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC INVERTER 3PHASE HIC 4DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 44-DIP Module, 37 Leads.
In Stock: 582
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 45A |
| Voltage - Supply | 12.5V ~ 17.5V |
| Voltage - Load | 450V (Max) |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Shoot-Through, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 44-DIP Module, 37 Leads |
| Supplier Device Package | 44-DIP |
STK5F4U3C2D-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK581U3C2D-E | onsemi | IC MOTOR DRIVER 22SIP | 100% | View |
| STK5F1U3C2D-E | onsemi | MODULE HYBRID INVERTER 3PHASE | 99% | View |
| STK621-061-E | Sanyo | 3-PHASE INVERTER MOTOR DRIVE IC | 98% | View |
| STK551U3A2A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 86% | View |
| STK621-043A-E | Fairchild Semiconductor | MOTION CONTROL ELECTRONIC | 84% | View |
| STK621-041A-E | onsemi | IC MOTOR DRIVER | 78% | View |
Submit your RFQ for STK5F4U3C2D-E and get a quote within 24 hours.
