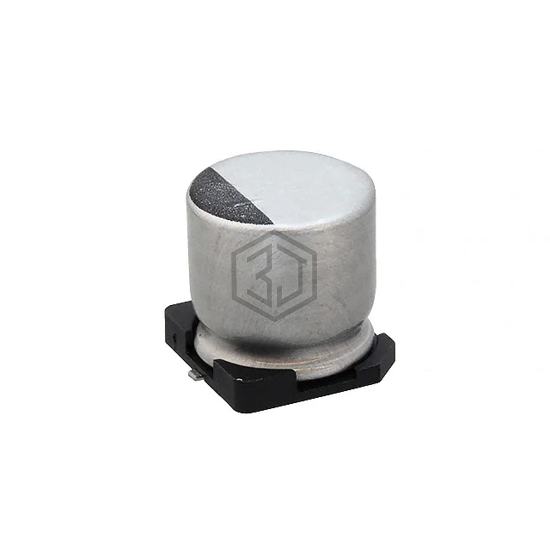

CAP ALUM 47UF 20% 50V SMD
50SEV47M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,151
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 420 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 79% | View |
| VZH470M1VTR-0606S | Surge | CAP ALUM 35V POLAR | 70% | View |
| EEE-TG1H470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 50V SMD | 69% | View |
| EEE-FT1V470AR | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 62% | View |
| EEE-FK1K470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 53% | View |
| EEV476M025A9GAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 53% | View |
Submit your RFQ for 50SEV47M10X10.5 and get a quote within 24 hours.
