Panasonic Electronic Components

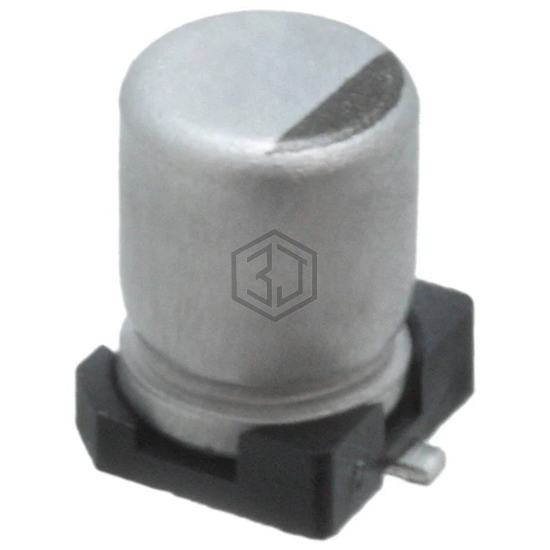

CAP ALUM 47UF 20% 35V SMD
EEE-FT1V470AR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 360mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 156 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZT470M1VTR-0506S | Surge | CAP ALUM 35V POLAR | 100% | View |
| UE476M035HEJTA | Aillen | CAP ALUM 47UF 20% 35V SMD | 99% | View |
| AFC476M35E16T-F | Cornell Dubilier Knowles | CAP ALUM 47UF 20% 35V SMD | 97% | View |
| EEV476M025A9GAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 88% | View |
| EEE-FK1K470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 74% | View |
| MAL214699803E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 52% | View |
Submit your RFQ for EEE-FT1V470AR and get a quote within 24 hours.
