Panasonic Electronic Components
CAP ALUM 47UF 20% 80V SMD

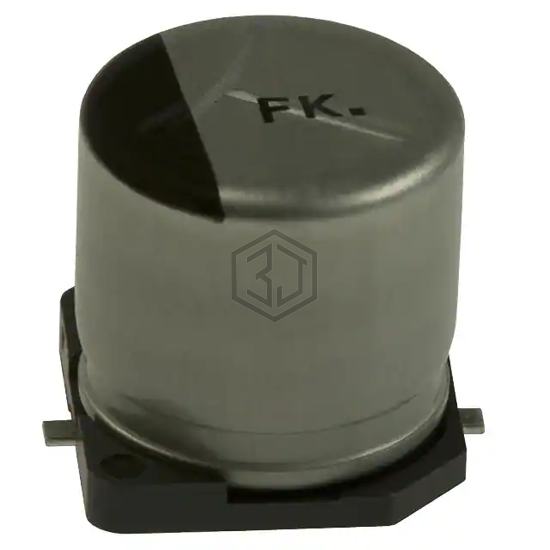

EEE-FK1K470P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 1,280
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 700 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1V470AR | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 74% | View |
| EEV476M025A9GAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 72% | View |
| AHA476M50G24T-F | Cornell Dubilier Knowles | CAP ALUM 47UF 20% 50V SMD | 72% | View |
| EMZJ160ADA470ME61G | United Chemi-Con | CAP ALUM 47UF 20% 16V SMD | 64% | View |
| MAL214699803E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 55% | View |
| UUX1E470MCL6GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 53% | View |
Submit your RFQ for EEE-FK1K470P and get a quote within 24 hours.
