Panasonic Electronic Components
CAP ALUM 47UF 20% 50V SMD

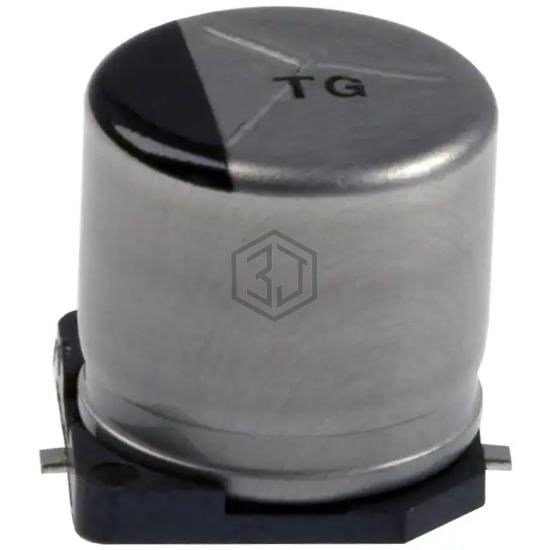

EEE-TG1H470P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 500mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 143.7 mA @ 120 Hz |
| Ripple Current @ High Frequency | 221 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCZ1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 94% | View |
| EMVH500ARA470MHA0G | Chemi-Con | CAP ALUM 47UF 20% 50V SMD | 91% | View |
| EDT476M035S9MAA | KEMET | CAP ALUM 47UF 20% 35V SMD | 83% | View |
| UCH1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 77% | View |
| MAL214699803E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 59% | View |
| UUB1H470MNL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 56% | View |
