Panasonic Electronic Components

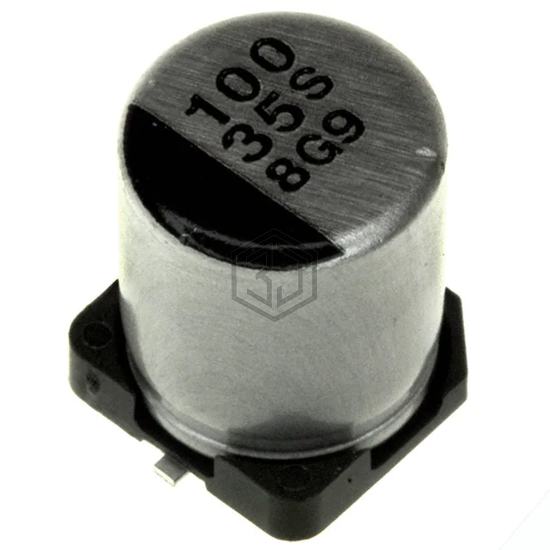

CAP ALUM 100UF 20% 35V SMD
ECE-V1VA101XP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,069
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 132 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1VA101XP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35TXV100M10X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 85% | View |
| EMZR500ARA101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 50V SMD | 83% | View |
| UWZ1H101MCL1GS | Nichicon | CAP ALUM 100UF 20% 50V SMD | 83% | View |
| UCD1E101MCS1GS | Nichicon | CAP ALUM 25V POLAR | 83% | View |
| 35SEV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 76% | View |
| 865060143004 | Würth Elektronik | CAP ALUM 100UF 20% 6.3V SMD | 66% | View |
Submit your RFQ for ECE-V1VA101XP and get a quote within 24 hours.
