CAP ALUM 100UF 20% 50V SMD

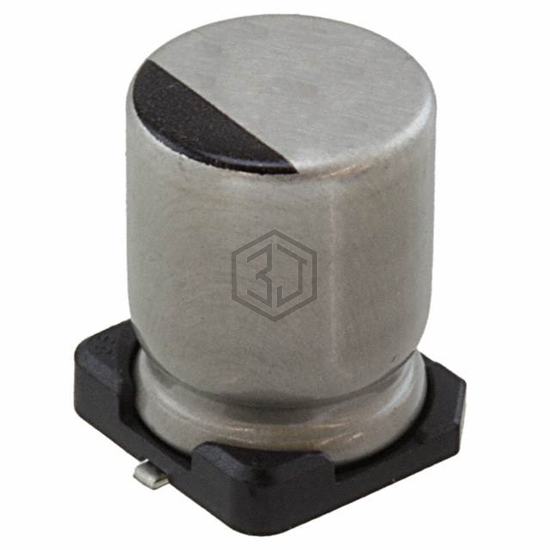

UWZ1H101MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZR500ARA101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 50V SMD | 88% | View |
| UCM1J101MNL1GS | Nichicon | CAPACITOR | 83% | View |
| UCM1J101MNS1GS | Nichicon | CAP ALUM 63V POLAR | 83% | View |
| 865060143004 | Würth Elektronik | CAP ALUM 100UF 20% 6.3V SMD | 73% | View |
| EEE-FK0J101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 6.3V SMD | 70% | View |
| MAL215097803E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V SMD | 65% | View |
Submit your RFQ for UWZ1H101MCL1GS and get a quote within 24 hours.
