CAP ALUM 100UF 20% 35V SMD

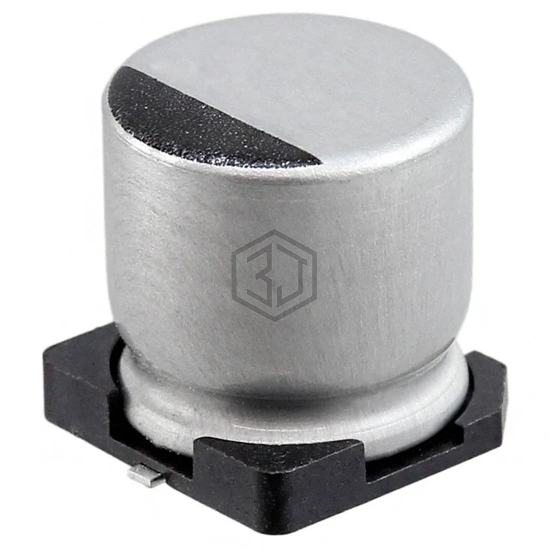

35TXV100M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,077
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 100mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 420 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMHB350ARA101MJA0G | Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 85% | View |
| EEE-TC1E101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 84% | View |
| UBC1H101MNS1MS | Nichicon | CAP ALUM 100UF 20% 50V SMD | 82% | View |
| CGS035M101F10PE50V00A | Suscon | CAP ALUM 100UF 20% 35V SMD | 75% | View |
| EEE-TQV101XAP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 70% | View |
| EEE-TK2A101AM | Panasonic Electronic Components | CAP ALUM 100UF 20% 100V SMD | 69% | View |
Submit your RFQ for 35TXV100M10X10.5 and get a quote within 24 hours.
