Panasonic Electronic Components
CAP ALUM 100UF 20% 25V RADIAL

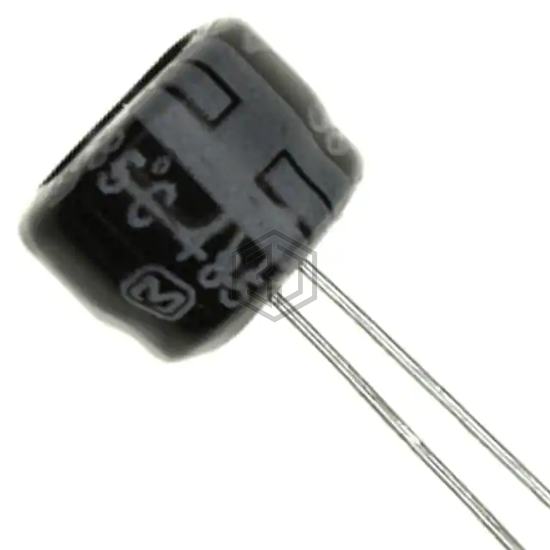

ECE-A1EKS101 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,595
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 144.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-A1CKS101I | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V RADIAL | 79% | View |
| UST1A101MDD1TD | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 76% | View |
| 6.3MH7100MEFCTZ6.3X7 | Rubycon | CAP ALUM 100UF 20% 6.3V RADIAL | 68% | View |
| WBR100-16A | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 16V AXIAL | 58% | View |
| EEU-FR1C101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V RADIAL | 51% | View |
| RUA101M1VBK-1020S | SURGE | CAP ALUM 100UF 20% 35V RADIAL | 50% | View |
Submit your RFQ for ECE-A1EKS101 and get a quote within 24 hours.
