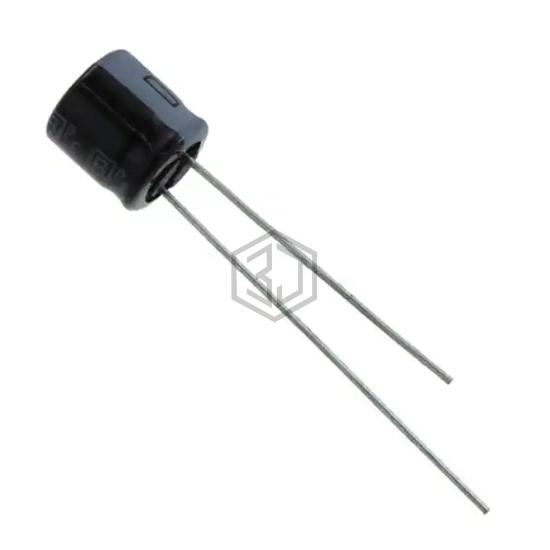

CAP ALUM 100UF 20% 6.3V RADIAL
6.3MH7100MEFCTZ6.3X7 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,770
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 77 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UST1A101MDD1TD | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 74% | View |
| UMT0G101MDD1TE | Nichicon | CAP ALUM 100UF 20% 4V RADIAL | 73% | View |
| KZE10VB101M5X11LL | United Chemi-Con | CAP ALUM 100UF 20% 10V RADIAL | 72% | View |
| EFL-100ELL101MF07D | United Chemi-Con | CAP ALUM 100UF 20% 10V RADIAL | 64% | View |
| UPJ1A101MED1TA | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 63% | View |
| EEU-FM1A101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V RADIAL | 51% | View |
