Panasonic Electronic Components

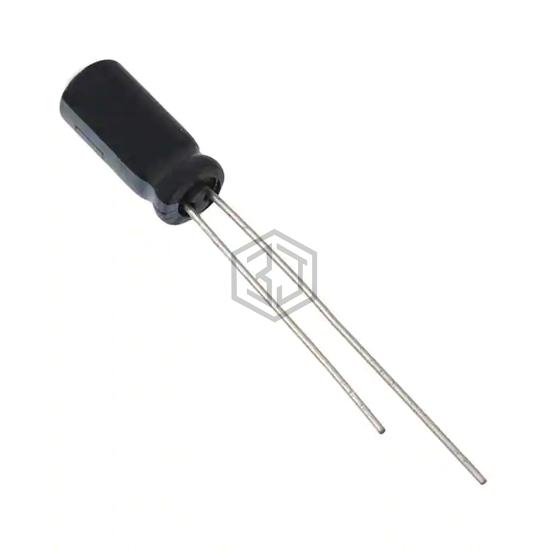

CAP ALUM 100UF 20% 16V RADIAL
EEU-FR1C101 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 21,177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 196 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM1A101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V RADIAL | 88% | View |
| REF0511101M016K | KYOCERA AVX | CAP ALUM 100UF 20% 16V RADIAL TH | 84% | View |
| UKA1H101MPD1TD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 78% | View |
| MAL212325101 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 16V AXIAL | 77% | View |
| 107TMA063M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 77% | View |
| KZE10VB101M5X11LL | United Chemi-Con | CAP ALUM 100UF 20% 10V RADIAL | 71% | View |
Submit your RFQ for EEU-FR1C101 and get a quote within 24 hours.
