CAP ALUM 100UF 20% 10V RADIAL

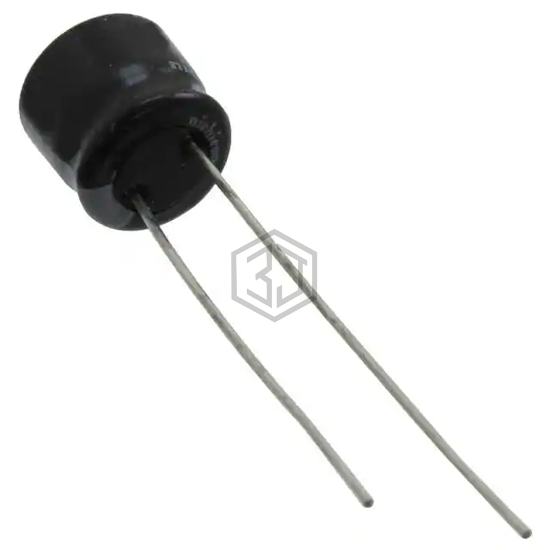

UST1A101MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,420
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 96 mA @ 120 Hz |
| Ripple Current @ High Frequency | 144 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1A101MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKT1A101MDD | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 96% | View |
| UVZ1A101MDH | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 96% | View |
| EEU-FC1A101SH | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V RADIAL | 91% | View |
| UPJ1A101MED1TA | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 83% | View |
| MAL212324101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 10V AXIAL | 83% | View |
| B41858C9107M8 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for UST1A101MDD1TD and get a quote within 24 hours.
