IC DRIVER HALF BRIDGE HEX 24SSOP

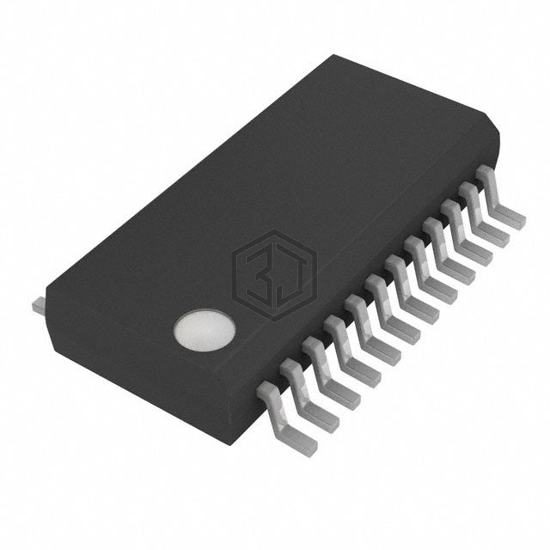

NCV7728DPR2G is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC DRIVER HALF BRIDGE HEX 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.15V ~ 5.25V, package / case 24-SSOP (0.154", 3.90mm Width).
In Stock: 2,359
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (6) |
| Applications | DC Motors, General Purpose |
| Interface | SPI |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Current - Output / Channel | 550mA |
| Current - Peak Output | - |
| Voltage - Supply | 3.15V ~ 5.25V |
| Voltage - Load | 5.5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 24-SSOP |
NCV7728DPR2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE94106ELXUMA1 | Infineon Technologies | IC DRIVER HALF-BRIDGE 24SSOP | 95% | View |
| ATA6836C-TIQW | Microchip Technology | IC HALF-BRIDGE DRVR SPI 28SOIC | 86% | View |
| ATA6836C-PXQW-1 | Microchip Technology | IC HALF-BRIDGE DRVR SPI 24QFN | 86% | View |
