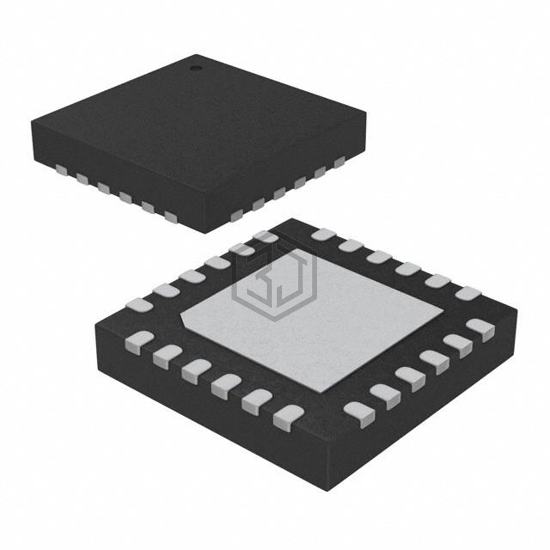

IC HALF-BRIDGE DRVR SPI 24QFN
ATA6836C-PXQW-1 is a PMIC - Full, Half-Bridge Drivers manufactured by Microchip Technology. IC HALF-BRIDGE DRVR SPI 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 24-VQFN Exposed Pad.
In Stock: 4,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (6) |
| Applications | Bulbs, DC Motors, Resistors |
| Interface | SPI |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Current - Output / Channel | 650mA |
| Current - Peak Output | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 5.5V ~ 40V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-VQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATA6836C-TIQW | Microchip Technology | IC HALF-BRIDGE DRVR SPI 28SOIC | 100% | View |
| NCV7728DPR2G | onsemi | IC DRIVER HALF BRIDGE HEX 24SSOP | 86% | View |
| TLE94106ELXUMA1 | Infineon Technologies | IC DRIVER HALF-BRIDGE 24SSOP | 82% | View |
Submit your RFQ for ATA6836C-PXQW-1 and get a quote within 24 hours.
