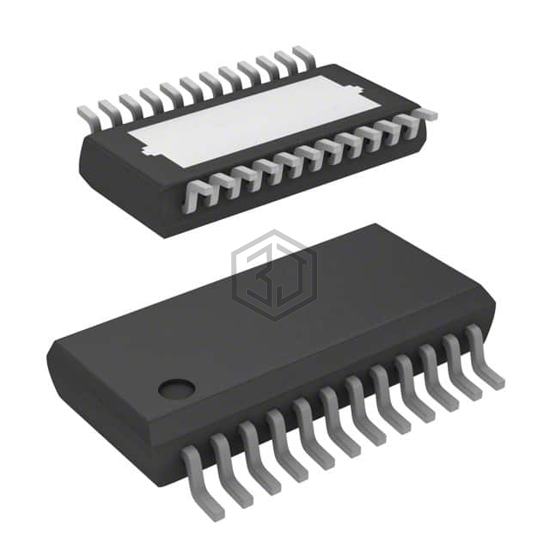

IC DRIVER HALF-BRIDGE 24SSOP
TLE94106ELXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC DRIVER HALF-BRIDGE 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 6,527
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (6) |
| Applications | DC Motors, General Purpose |
| Interface | SPI |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 850mOhm LS, 850mOhm HS |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 2A |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 5.5V ~ 20V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-SSOP-24 |
TLE94106ELXUMA1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV7728DPR2G | onsemi | IC DRIVER HALF BRIDGE HEX 24SSOP | 95% | View |
| ATA6836C-TIQW | Microchip Technology | IC HALF-BRIDGE DRVR SPI 28SOIC | 82% | View |
| ATA6836C-PXQW-1 | Microchip Technology | IC HALF-BRIDGE DRVR SPI 24QFN | 82% | View |
Submit your RFQ for TLE94106ELXUMA1 and get a quote within 24 hours.
