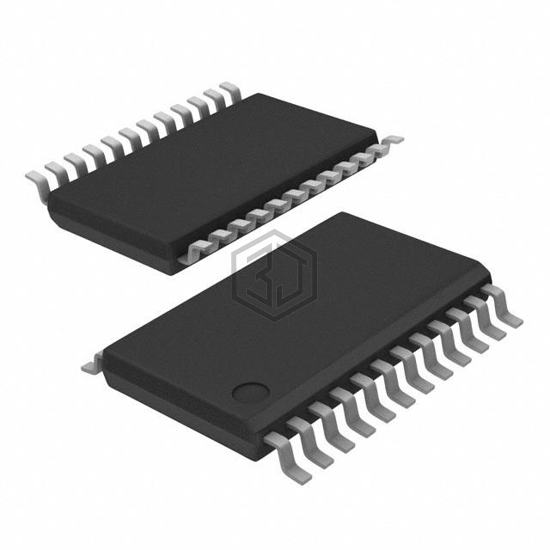

IC BRIDGE DRIVER PAR TSSOP-24
LV8014T-MPB-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC BRIDGE DRIVER PAR TSSOP-24. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - supply 2.7V ~ 5.5V, package / case 24-TFSOP (0.173", 4.40mm Width).
In Stock: 974
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 750mOhm |
| Current - Output / Channel | 1.4A |
| Current - Peak Output | 2.5A |
| Voltage - Supply | 2.7V ~ 5.5V |
| Voltage - Load | 2V ~ 7V |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Features | - |
| Fault Protection | Over Temperature |
| Mounting Type | Surface Mount |
| Package / Case | 24-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
LV8014T-MPB-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LV8014T-TLM-E | Sanyo | FORWARD/REVERSE MOTOR DRIVER | 100% | View |
| STSPIN240 | STMicroelectronics | LOW VOLTAGE DUAL BRUSH DC MOTOR | 93% | View |
| DRV8932PPWPR | Texas Instruments | 33V, 1A QUAD INDEPENDENT HALF BR | 73% | View |
| A3909GLNTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10SSOP | 68% | View |
| A3909GLYTR-T | Allegro MicroSystems | IC MOTOR DRIVER PAR 10MSOP | 68% | View |
| TLE94004EPXUMA1 | Infineon Technologies | BODY BRIDGES | 66% | View |
Submit your RFQ for LV8014T-MPB-E and get a quote within 24 hours.
