CAP ALUM 22UF 20% 4V SMD

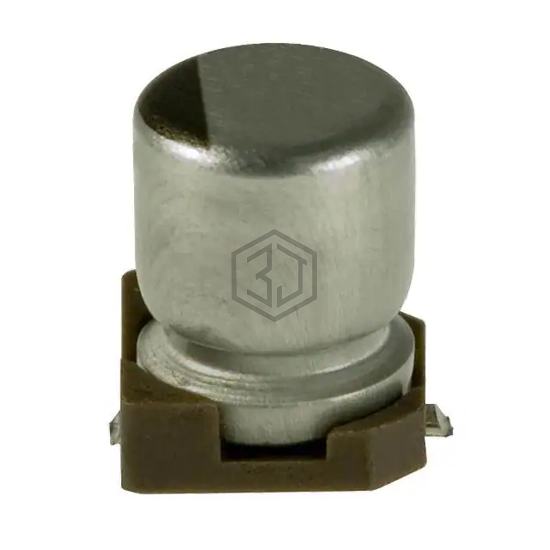

UWT0G220MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 7,776
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22 mA @ 120 Hz |
| Ripple Current @ High Frequency | 33 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT0G220MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3SKV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 84% | View |
| AVES226M06B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 6.3V SMD | 80% | View |
| UWZ1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 69% | View |
| UWG0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 64% | View |
| UCQ1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 64% | View |
| UWT1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 53% | View |
Submit your RFQ for UWT0G220MCR1GB and get a quote within 24 hours.
