CAP ALUM 22UF 20% 6.3V SMD

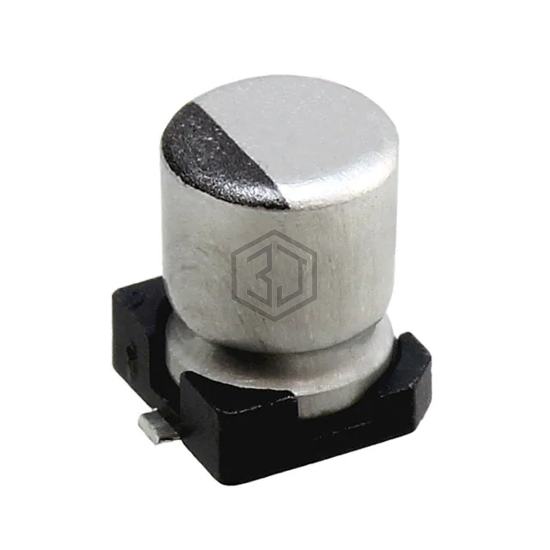

UWG0J220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,009
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
| Impedance | 3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD006M220C06PA | Lumimax Optoelectronic Technology | CAP ALUM 22UF 20% 6.3V SMD | 82% | View |
| UZ226M6V3HCHTA | Aillen | CAP ALUM 22UF 20% 6.3V SMD | 80% | View |
| EEE-FK0J220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 68% | View |
| MAL213961229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V SMD | 65% | View |
| UWT1H220MCL1GB | Nichicon | CAP ALUM 22UF 20% 50V SMD | 60% | View |
| EEE-FN1H220UR | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 56% | View |
Submit your RFQ for UWG0J220MCL1GB and get a quote within 24 hours.
