CAP ALUM 22UF 20% 25V SMD

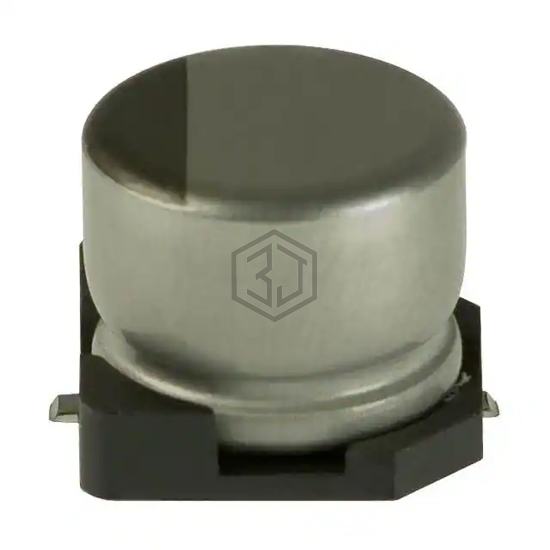

UWT1E220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 38 mA @ 120 Hz |
| Ripple Current @ High Frequency | 57 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCQ1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 68% | View |
| UT226M063HEJTA | Aillen | CAP. ALUM 22UF 63V 20% SMD | 61% | View |
| EEE-FK1H220SR | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 60% | View |
| EEE-FK0J220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 58% | View |
| EEE-FK0J220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 54% | View |
| UUX1H220MCL6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 51% | View |
Submit your RFQ for UWT1E220MCL1GB and get a quote within 24 hours.
