Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 6.3V SMD

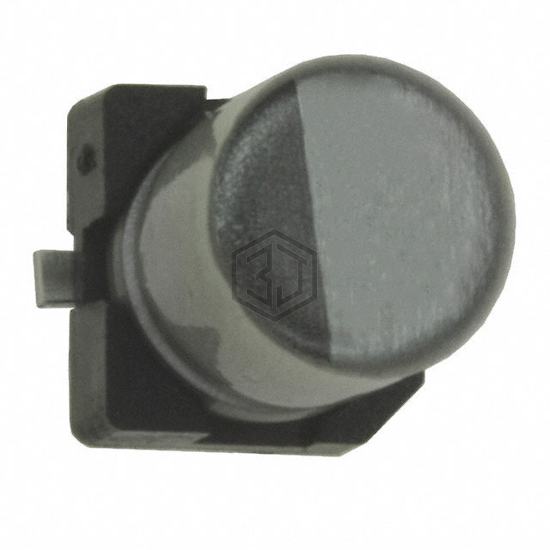

AVES226M06B12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 7,535
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 22.6Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21 mA @ 120 Hz |
| Ripple Current @ High Frequency | 26.25 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD006M220C06PA | Lumimax Optoelectronic Technology | CAP ALUM 22UF 20% 6.3V SMD | 100% | View |
| UWT0G220MCR1GB | Nichicon | CAP ALUM 22UF 20% 4V SMD | 80% | View |
| VES220M1ATR-0505S | Surge | CAP ALUM 10V POLAR | 75% | View |
| UWG0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 72% | View |
| UCQ1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 65% | View |
| UCQ1C220MCL1GB | Nichicon | CAP ALUM 22UF 20% 16V SMD | 57% | View |
