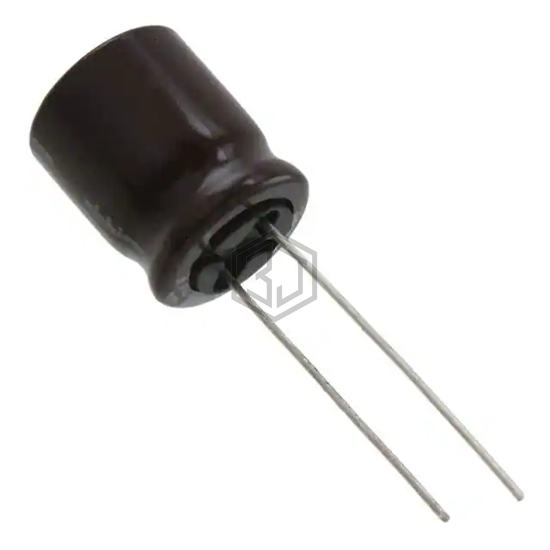

CAP ALUM 680UF 20% 16V RADIAL
UPJ1C681MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,314
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 815 mA @ 120 Hz |
| Ripple Current @ High Frequency | 985 mA @ 10 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1C681MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211915681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 16V AXIAL | 85% | View |
| UPA1C681MPD1TA | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 85% | View |
| UPM1A681MPD | Nichicon | CAP ALUM 680UF 20% 10V RADIAL | 76% | View |
| ELXZ100ELL681MH15D | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 66% | View |
| ELXV350ETD681MK25S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 56% | View |
| ELXV350ELL681MK25S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 56% | View |
