CAP ALUM 680UF 20% 10V RADIAL

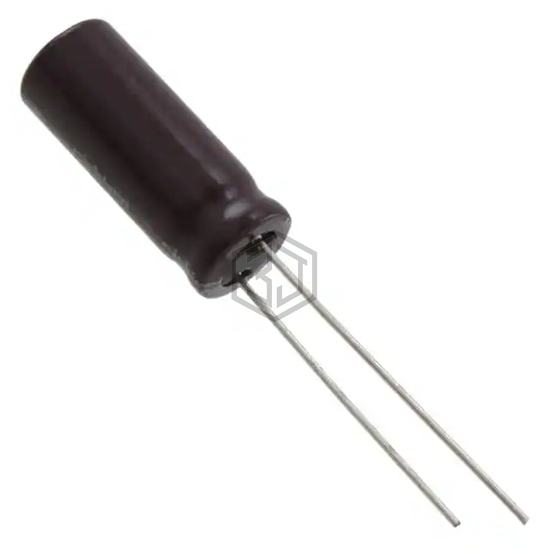

UPM1A681MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,277
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | 795 mA @ 10 kHz |
| Impedance | 85 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A681MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK681M1ABK-1016S | Surge | CAP ALUM 10V POLAR | 99% | View |
| ELXY100ETC681MH20D | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 89% | View |
| LXY10VB681M8X20LL | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 89% | View |
| RXK681M0JBK-1016S | Surge | CAP ALUM 6.3V POLAR | 87% | View |
| UPJ1C681MHD6 | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 76% | View |
| MAL211915681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 16V AXIAL | 64% | View |
Submit your RFQ for UPM1A681MPD and get a quote within 24 hours.
