CAP ALUM 680UF 20% 16V RADIAL

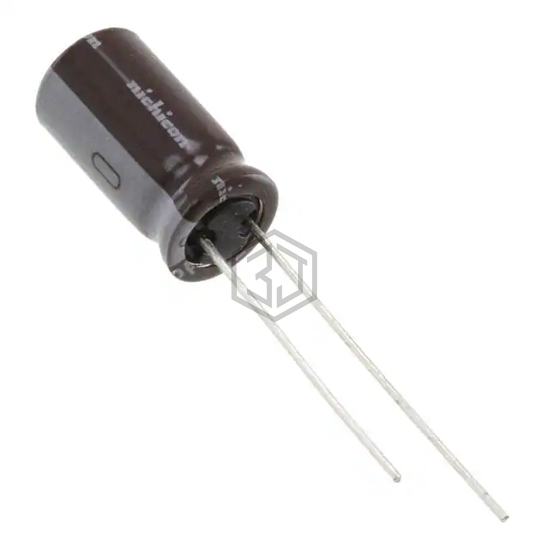

UPA1C681MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,001
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 645 mA @ 120 Hz |
| Ripple Current @ High Frequency | 860 mA @ 100 kHz |
| Impedance | 62 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1C681MHD6 | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 85% | View |
| 687KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 680UF 20% 16V RADIAL | 80% | View |
| MAL211915681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 16V AXIAL | 78% | View |
| ELXZ100ELL681MH15D | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 72% | View |
| RXW681M1ABK-1012S | Surge | CAP ALUM 10V POLAR | 71% | View |
| 601D687G050JJ1 | Vishay Sprague | CAP ALUM 680UF 50V AXIAL | 56% | View |
Submit your RFQ for UPA1C681MPD1TA and get a quote within 24 hours.
