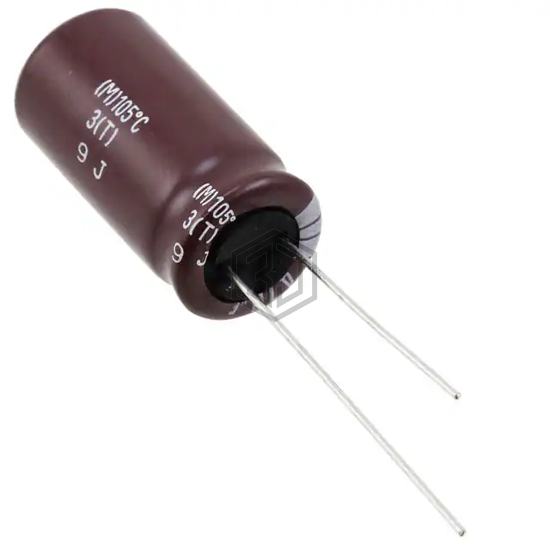

CAP ALUM 680UF 20% 35V RADIAL
ELXV350ETD681MK25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,074
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV350ELL681MK25S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 100% | View |
| MALREKB00FD368F00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 95% | View |
| UPW1V681MHH | Nichicon | CAP ALUM 680UF 20% 35V RADIAL | 90% | View |
| UPJ1V681MHD6TN | Nichicon | CAP ALUM 680UF 20% 35V RADIAL | 81% | View |
| MAL211915681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 16V AXIAL | 55% | View |
| B41692B8687Q001 | EPCOS - TDK Electronics | CAP ALUM 680UF 63V AXIAL | 51% | View |
Submit your RFQ for ELXV350ETD681MK25S and get a quote within 24 hours.
