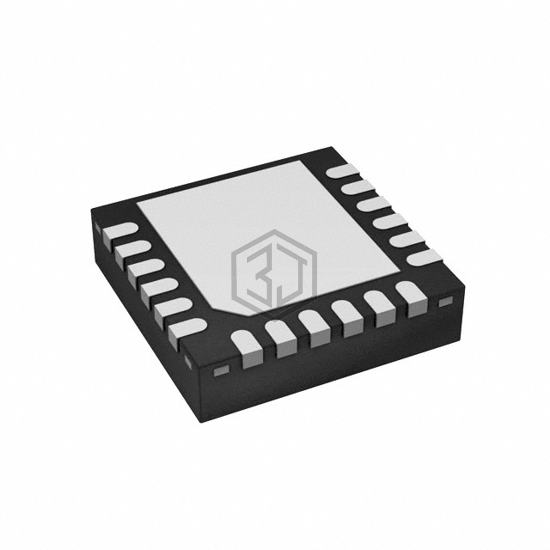

TRIPLE HALF-BRIDGE DRIVER 18QFN
ATA6831C-PIQW-1 is a PMIC - Full, Half-Bridge Drivers manufactured by Microchip Technology. TRIPLE HALF-BRIDGE DRIVER 18QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 18-VFQFN Exposed Pad.
In Stock: 9,524
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | Bulbs, DC Motors, Resistors |
| Interface | PWM, SPI |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 800mOhm LS, 800mOhm HS |
| Current - Output / Channel | 1A |
| Current - Peak Output | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 5.6V ~ 40V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 18-VFQFN Exposed Pad |
| Supplier Device Package | 18-QFN (4x4) |
