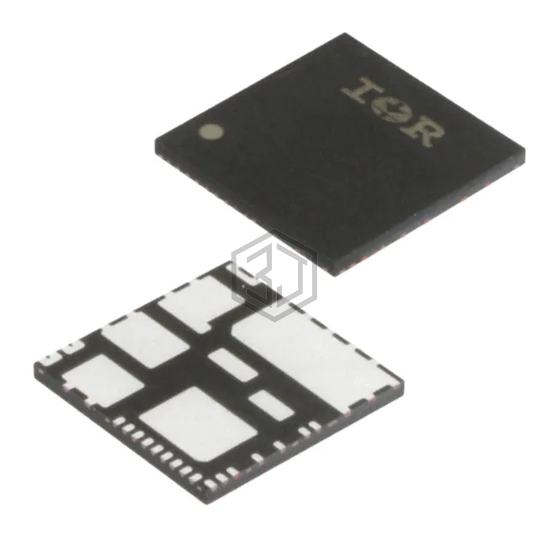

IC MOTOR DRIVER 500V QFN
IRSM836-015MATR is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 500V QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 36-PowerVQFN.
In Stock: 3,805
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 4.8Ohm |
| Current - Output / Channel | 1A |
| Current - Peak Output | 7A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 36-PowerVQFN |
| Supplier Device Package | 36-PQFN (12x12) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM836-015MA | Infineon Technologies | IC MOTOR DRIVER 500V QFN | 100% | View |
| IRSM505-015PAALMA1 | Infineon Technologies | CIPOS MICRO SOP23 | 93% | View |
| IRSM515-015PAALMA1 | Infineon Technologies | CIPOS MICRO SOP23 | 93% | View |
| IRSM515-015PA | Infineon Technologies | IC MOTOR DRIVER 600V 23SOP | 91% | View |
| ATA6832C-PIQW-1 | Microchip Technology | IC HALF-BRIDGE DRVR SPI 18QFN | 53% | View |
| ATA6831C-PIQW-1 | Microchip Technology | TRIPLE HALF-BRIDGE DRIVER 18QFN | 53% | View |
Submit your RFQ for IRSM836-015MATR and get a quote within 24 hours.
