DRIVER

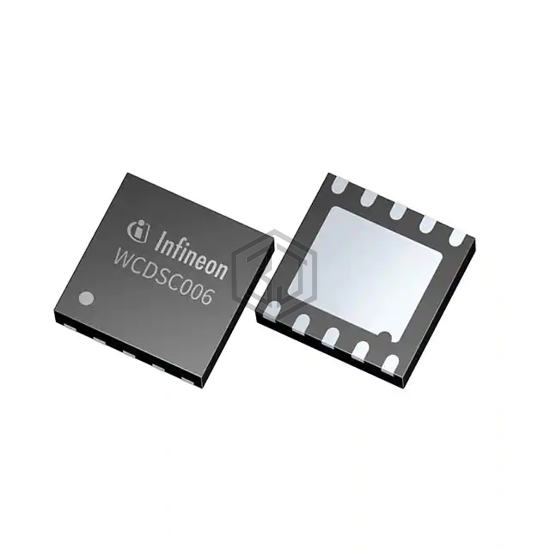

WCDSC006XUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.5V, package / case 10-WDFN Exposed Pad.
In Stock: 5,604
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | Logic, PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 800mOhm LS (Max), 2Ohm HS (Max) |
| Current - Output / Channel | 2A |
| Current - Peak Output | 2A |
| Voltage - Supply | 4.75V ~ 5.5V |
| Voltage - Load | 4.75V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | PG-WSON-10 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8770RGER | Texas Instruments | 100V H-BRIDGE GATE DRIVER | 86% | View |
| MP6610GJ-P | Monolithic Power Systems Inc. | 55V, 3A, HALF-BRIDGE POWER DRIVE | 77% | View |
| MP6610GS-Z | Monolithic Power Systems Inc. | 55V, 3A, HALF-BRIDGE POWER DRIVE | 77% | View |
| LMG3422R050RQZR | Texas Instruments | 600-V 50-M GAN FET WITH INTEGRAT | 65% | View |
| LMG3425R030RQZT | Texas Instruments | 600-V 30-M GAN FET WITH INTEGRAT | 65% | View |
| LMG3422R030RQZT | Texas Instruments | 600-V 30-M GAN FET WITH INTEGRAT | 65% | View |
Submit your RFQ for WCDSC006XUMA1 and get a quote within 24 hours.
