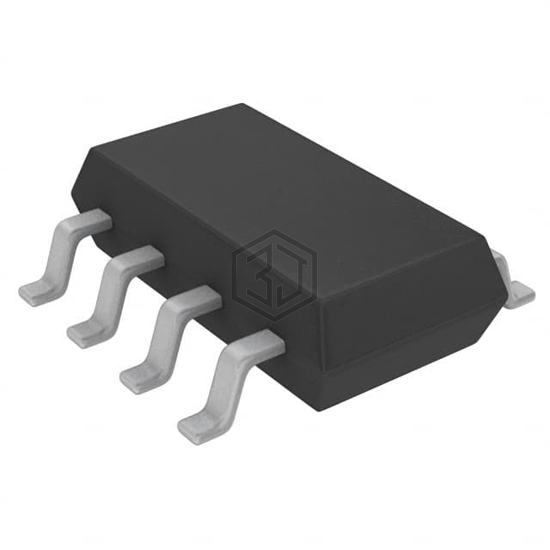

55V, 3A, HALF-BRIDGE POWER DRIVE
MP6610GJ-P is a PMIC - Full, Half-Bridge Drivers manufactured by Monolithic Power Systems Inc.. 55V, 3A, HALF-BRIDGE POWER DRIVE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4V ~ 45V, package / case SOT-23-8 Thin, TSOT-23-8.
In Stock: 7,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose, Solenoids |
| Interface | Analog, Logic, PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 120mOhm LS, 100mOhm HS |
| Current - Output / Channel | 3A |
| Current - Peak Output | 3A |
| Voltage - Supply | 4V ~ 45V |
| Voltage - Load | 4V ~ 45V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit, Charge Pump |
| Fault Protection | Over Current, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP6610GJ-Z | Monolithic Power Systems Inc. | 55V, 3A, HALF-BRIDGE POWER DRIVE | 100% | View |
| MP6610GS-P | Monolithic Power Systems Inc. | 55V, 3A, HALF-BRIDGE POWER DRIVE | 100% | View |
| MP6610GS-Z | Monolithic Power Systems Inc. | 55V, 3A, HALF-BRIDGE POWER DRIVE | 100% | View |
| WCDSC006XUMA1 | Infineon Technologies | DRIVER | 77% | View |
| MC33HB2000FK | NXP USA Inc. | H-BRIDGE SPI BRUSHED DC MOTOR | 72% | View |
| MC33HB2000FKR2 | NXP USA Inc. | H-BRIDGE SPI BRUSHED DC MOTOR | 72% | View |
Submit your RFQ for MP6610GJ-P and get a quote within 24 hours.
