SWITCH MOSFET/DRIVER TO220-7-230

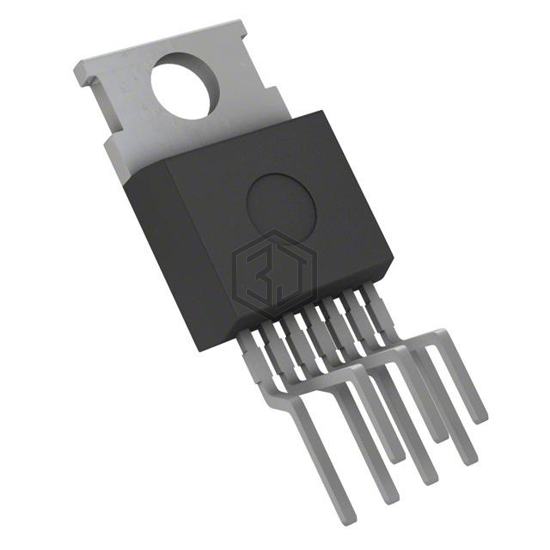

TDA21201-S7 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. SWITCH MOSFET/DRIVER TO220-7-230. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C (TJ), voltage - supply 9V ~ 15V, package / case TO-220-7.
In Stock: 358
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 4.8mOhm LS, 13.3mOhm HS |
| Current - Output / Channel | 30A |
| Current - Peak Output | - |
| Voltage - Supply | 9V ~ 15V |
| Voltage - Load | 9V ~ 15V |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 |
| Supplier Device Package | P-TO220-7-230 |
TDA21201-S7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TDA21201-P7 | Infineon Technologies | SWITCH MOSFET/DRIVER TO220-7-3 | 100% | View |
| TDA21201P7 | Infineon Technologies | IC MOSFET DRIVER N-CH TO220-7-3 | 100% | View |
| BTS7960P | Infineon Technologies | IC NOVALITHIC 1/2 BRIDGE TO220-7 | 71% | View |
Submit your RFQ for TDA21201-S7 and get a quote within 24 hours.
