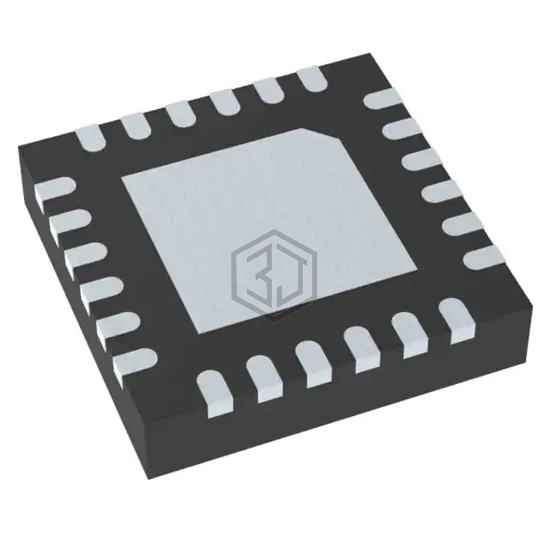

100V H-BRIDGE GATE DRIVER
DRV8770RGER is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. 100V H-BRIDGE GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 20V, package / case 24-VFQFN Exposed Pad.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Analog, Logic, PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | NMOS, Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | 1.5A |
| Voltage - Supply | 5V ~ 20V |
| Voltage - Load | 5V ~ 20V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Shoot-Through |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
