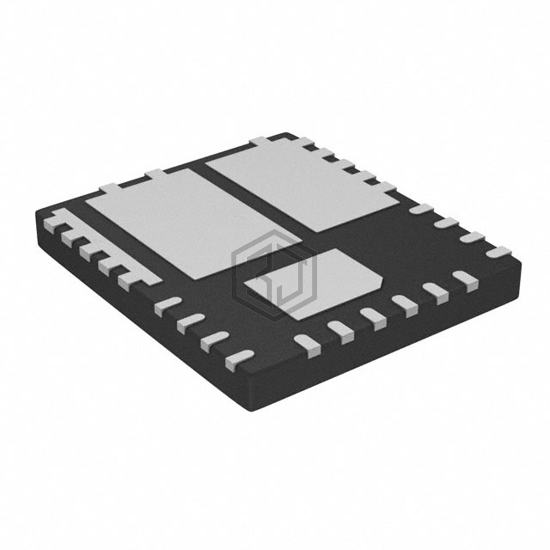

IC GATE DRIVER 40V QFN
IRSM005-800MH is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC GATE DRIVER 40V QFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 10V ~ 20V, package / case 27-PowerVQFN.
In Stock: 1,273
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | AC Motors, DC Motors, DC-DC Converters, General Purpose |
| Interface | Logic |
| Load Type | Inductive, Capacitive |
| Technology | Power MOSFET |
| Rds On (Typ) | 2.7mOhm |
| Current - Output / Channel | 80A |
| Current - Peak Output | - |
| Voltage - Supply | 10V ~ 20V |
| Voltage - Load | 40V (Max) |
| Operating Temperature | 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 27-PowerVQFN |
| Supplier Device Package | 27-PQFN (7x8) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM005-800MHTR | Infineon Technologies | IC GATE DRIVER 40V QFN | 100% | View |
| BTN7970B | Infineon Technologies | BTN7970 - INTEGRATED HALF-BRIDGE | 62% | View |
| CSD95485RWJ | Texas Instruments | SYNCHRONOUS BUCK | 55% | View |
| CSD95485RWJT | Texas Instruments | SYNCHRONOUS BUCK | 55% | View |
| CSD95480RWJT | Texas Instruments | POWERSTAGE | 52% | View |
| CSD95480RWJ | Texas Instruments | SYNCHRONOUS BUCK | 52% | View |
Submit your RFQ for IRSM005-800MH and get a quote within 24 hours.
