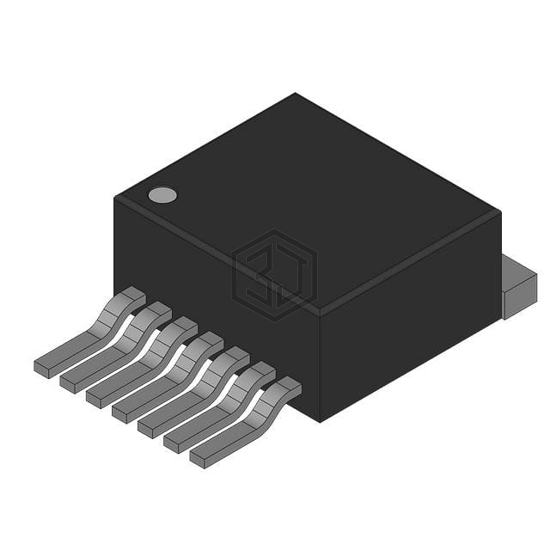

BTN7970 - INTEGRATED HALF-BRIDGE
BTN7970B is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. BTN7970 - INTEGRATED HALF-BRIDGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 8V ~ 18V, package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 6,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | Logic, PWM |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 9mOhm LS, 7mOhm HS |
| Current - Output / Channel | 70A |
| Current - Peak Output | 70A |
| Voltage - Supply | 8V ~ 18V |
| Voltage - Load | 8V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Charge Pump, Status Flag |
| Fault Protection | Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | PG-TO263-7-1 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSD95372BQ5M | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 76% | View |
| CSD95378BQ5MC | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 76% | View |
| CSD95372BQ5MC | Texas Instruments | POWER STAGE DESIGN FOR DUAL COOL | 76% | View |
| CSD95378BQ5M | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 76% | View |
| SIC620ARCD-T1-GE3 | Vishay Siliconix | IC CTLR STAGE 60A 3.3V PWM PPAK | 74% | View |
| FDMF5826DC | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 74% | View |
Submit your RFQ for BTN7970B and get a quote within 24 hours.
